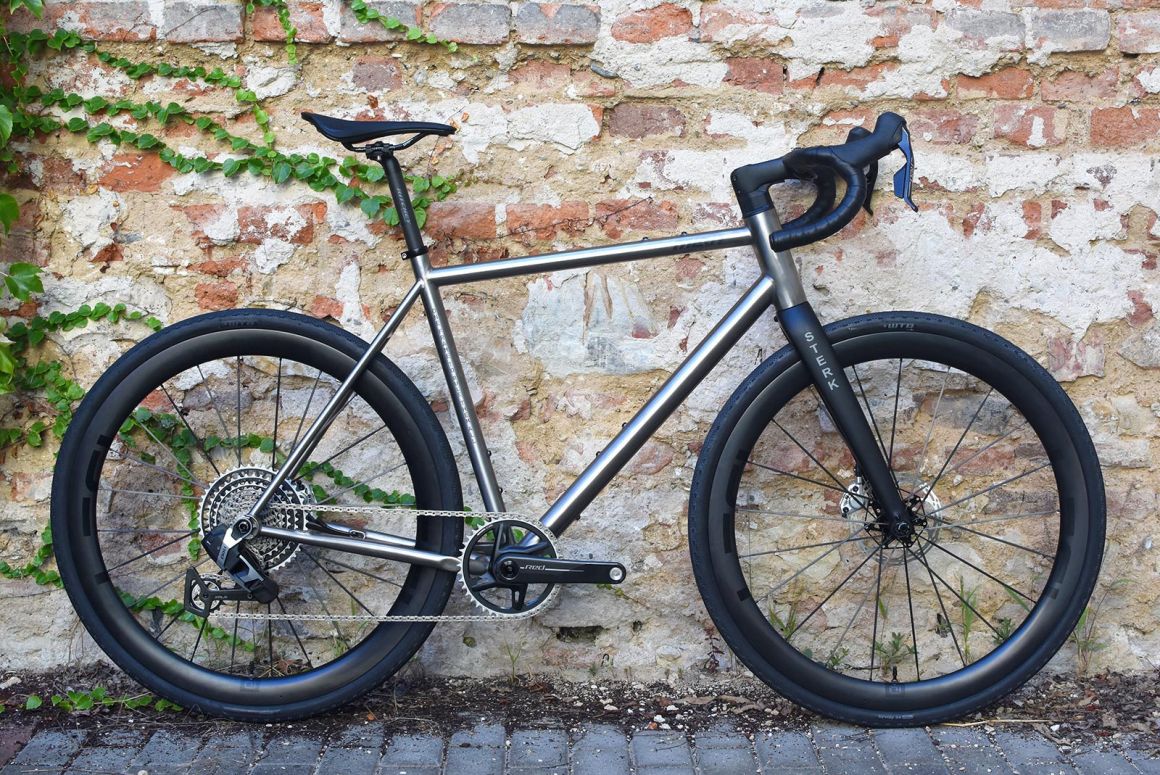

MERIT Sterk /ƩTƐRK/ Titanium GRAVEL BIKE
If you want comfortable gravel, go for titanium! Our newly developed bike combines the elegance of round tubes, hidden internal cable routing, a great combination of materials with high-quality modern components.
BIKE FRAME SPECIFICATION
|
Material |
3Al-2.5V + 6AL-4V |
|
BB Standard |
T47 85,5mm |
|
Headset Standard |
1 1/2" and 1 1/2"° |
|
Frame Max Tire Clearance w/o fender |
700C x 42mm / 650B x 48mm |
|
Seat Post Diameter |
27.2 mm |
|
Seat clamp diameter |
31,8 mm |
|
Brake mount front |
Flat Mount |
|
Brake mount rear |
Flat Mount |
|
Rotor clearance front |
160 or 180 mm |
|
Rotor clearance rear |
140 or 160 mm |
|
Maximum chainring for GRX chainline |
1x 50t; 2x 52/36t |
|
Maximum chainring for traditional road crank |
1x 46t, 2x 50/34t |
|
Front through axle |
12 mm x 100 mm |
|
Rear through axle |
12 mm x 142 mm |
|
Front Derailleur Hanger |
No |
|
Bottle Mounts |
2x |
|
Fender Mounts |
no |
|
Rack Mounts |
no |
Frame Geometry (mm)
| SIZE | A | B | RC | D | E | F | FC | G | H | H“ | I | J | WB | Reach | Stack |
| S | 495 | 540 | 435 | 70 | 400 | 50 | 608 | 120 | 73,5 | 70 | 1 1/2'' | 1 1/2'' | 1034 | 380 | 541 |
| M | 520 | 561 | 435 | 70 | 400 | 50 | 620 | 139 | 73 | 70,5 | 1 1/2'' | 1 1/2'' | 1046 | 389 | 561 |
| L | 540 | 580 | 435 | 70 | 400 | 50 | 640 | 160 | 73 | 70,5 | 1 1/2'' | 1 1/2'' | 1066 | 403 | 581 |
| XL | 554 | 598 | 435 | 70 | 400 | 50 | 659 | 180 | 73 | 70,5 | 1 1/2'' | 1 1/2'' | 1085 | 415 | 600 |
| XXL | 580 | 619 | 435 | 70 | 400 | 50 | 675 | 201 | 73 | 70,5 | 1 1/2'' | 1 1/2'' | 1100 | 424 | 618 |
