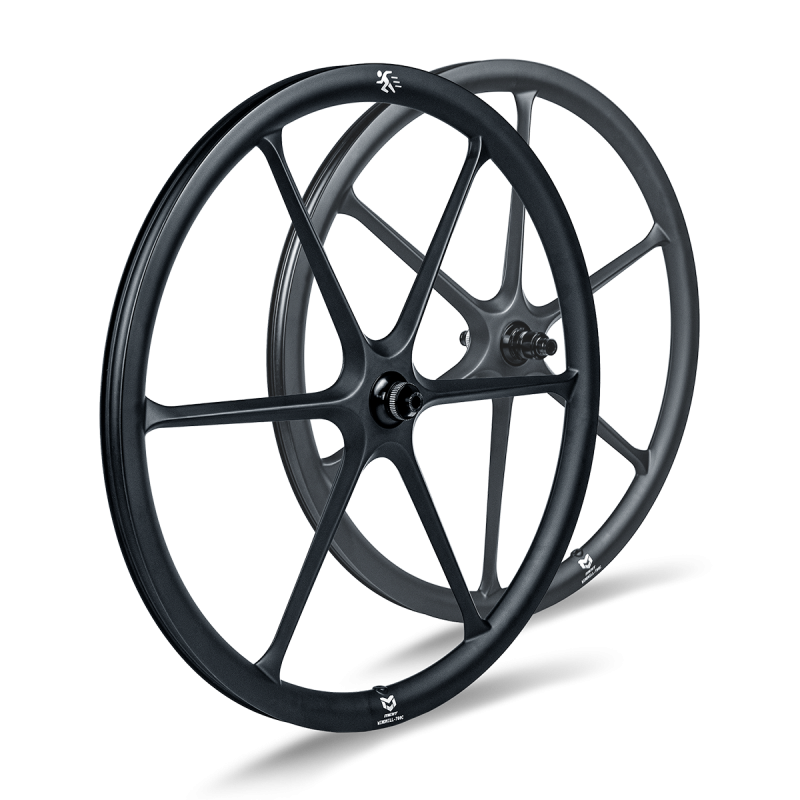

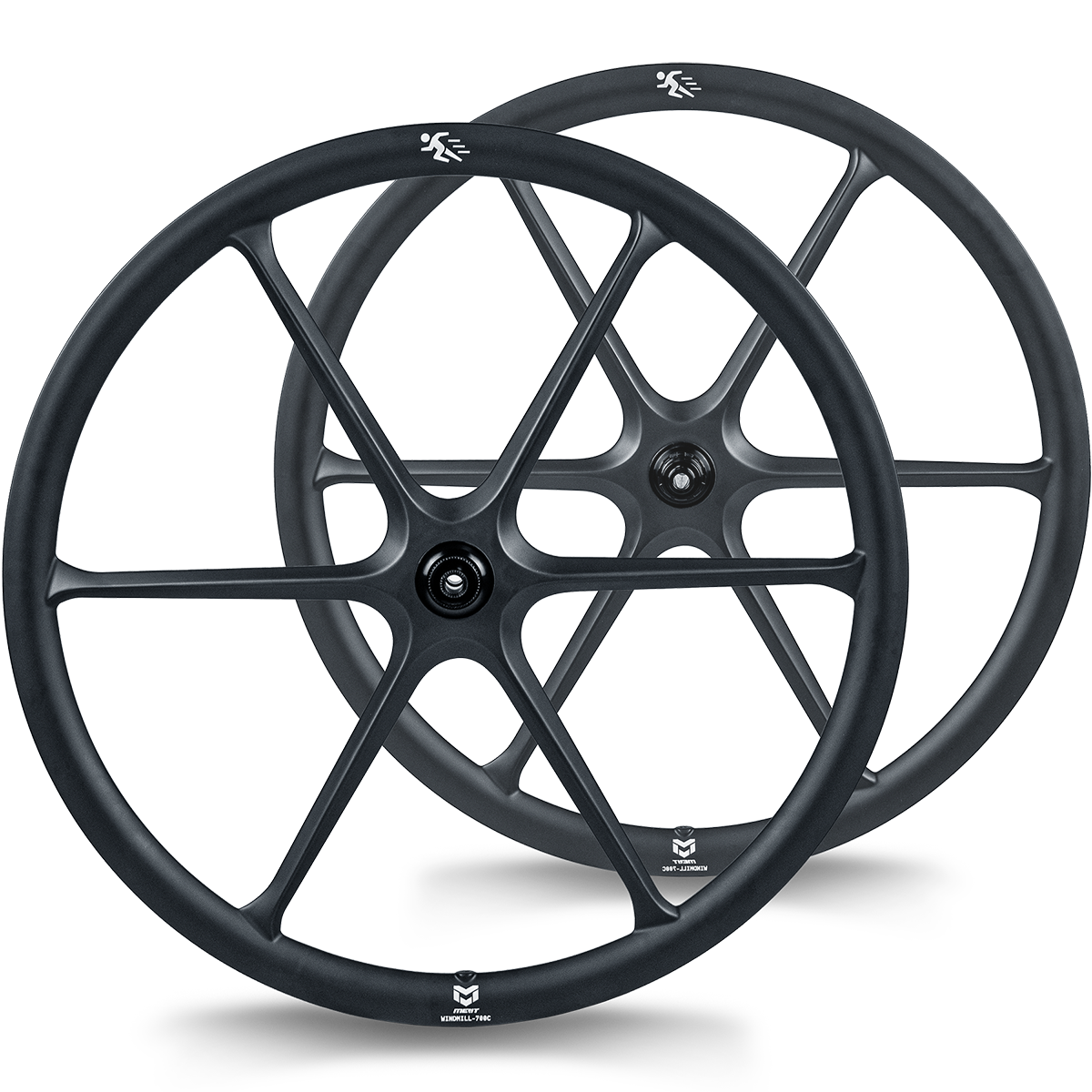

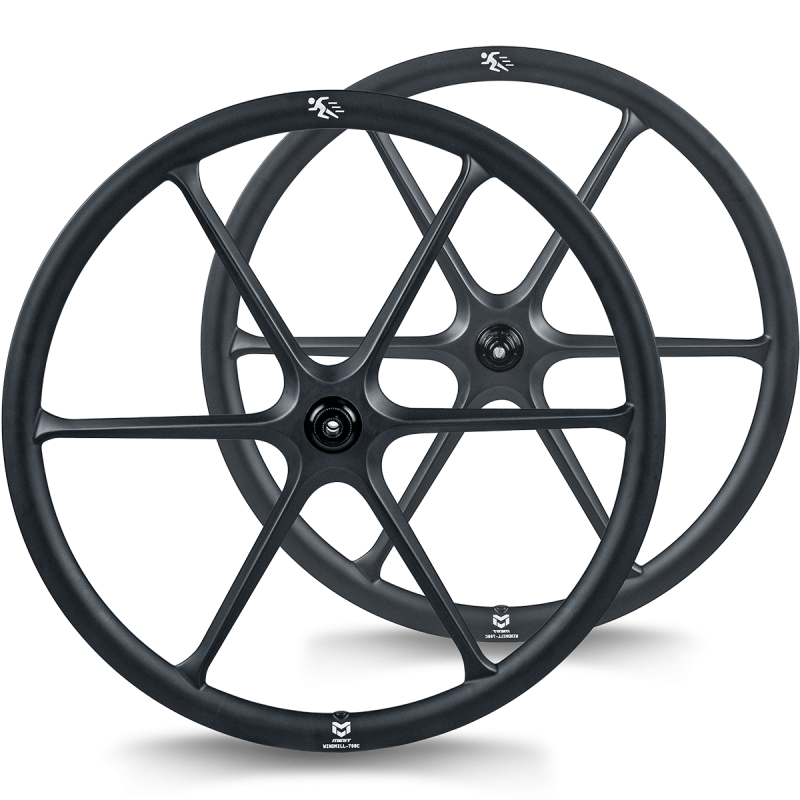

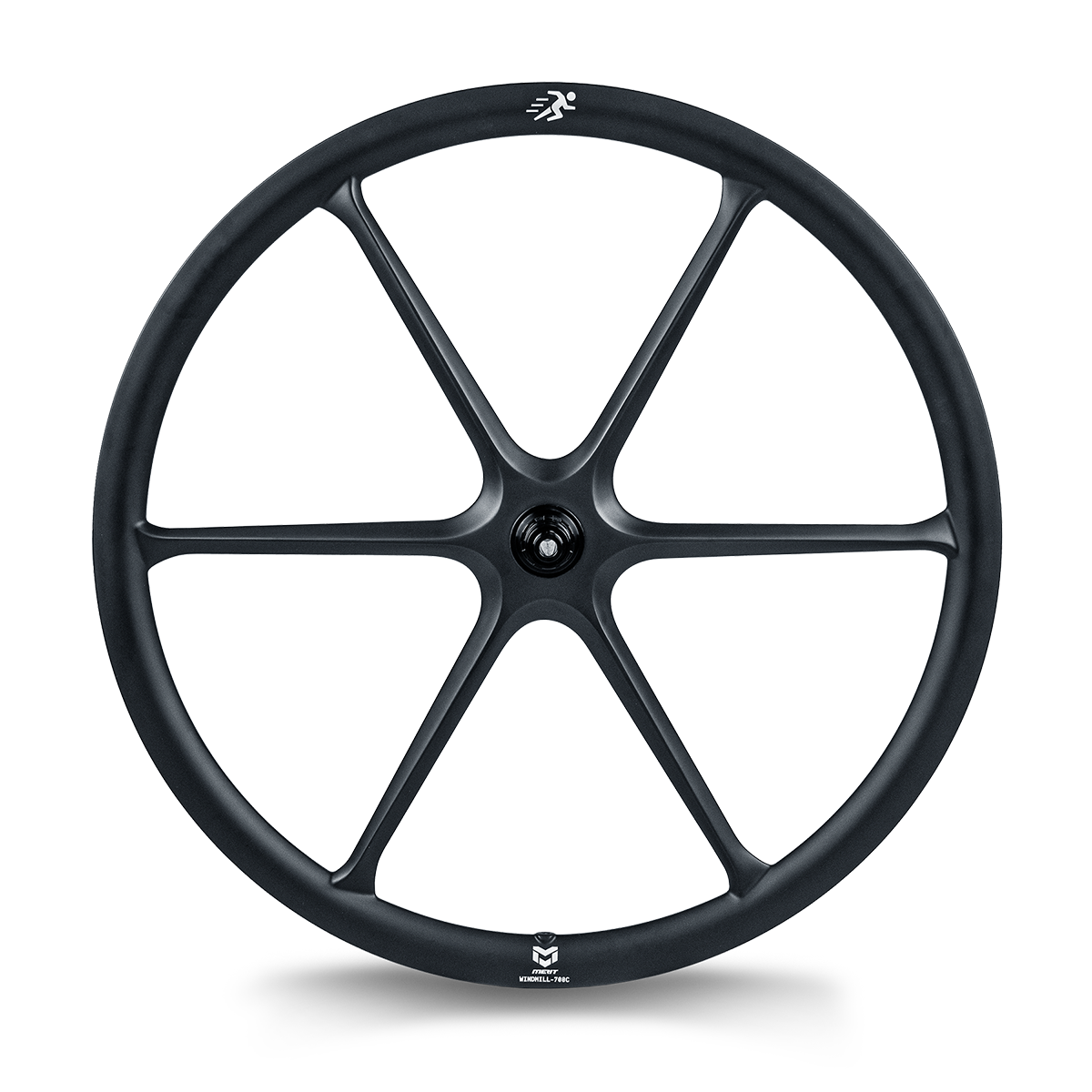

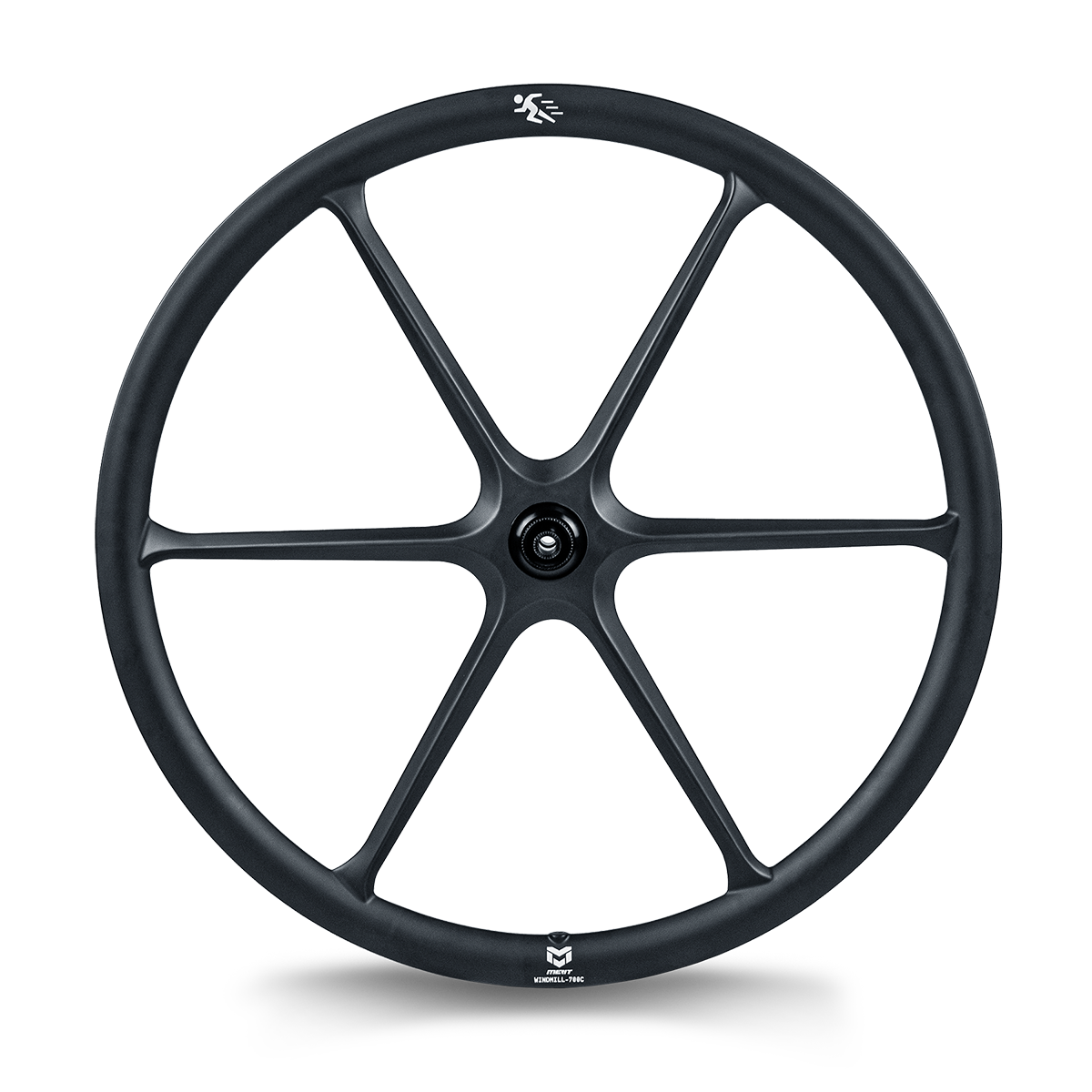

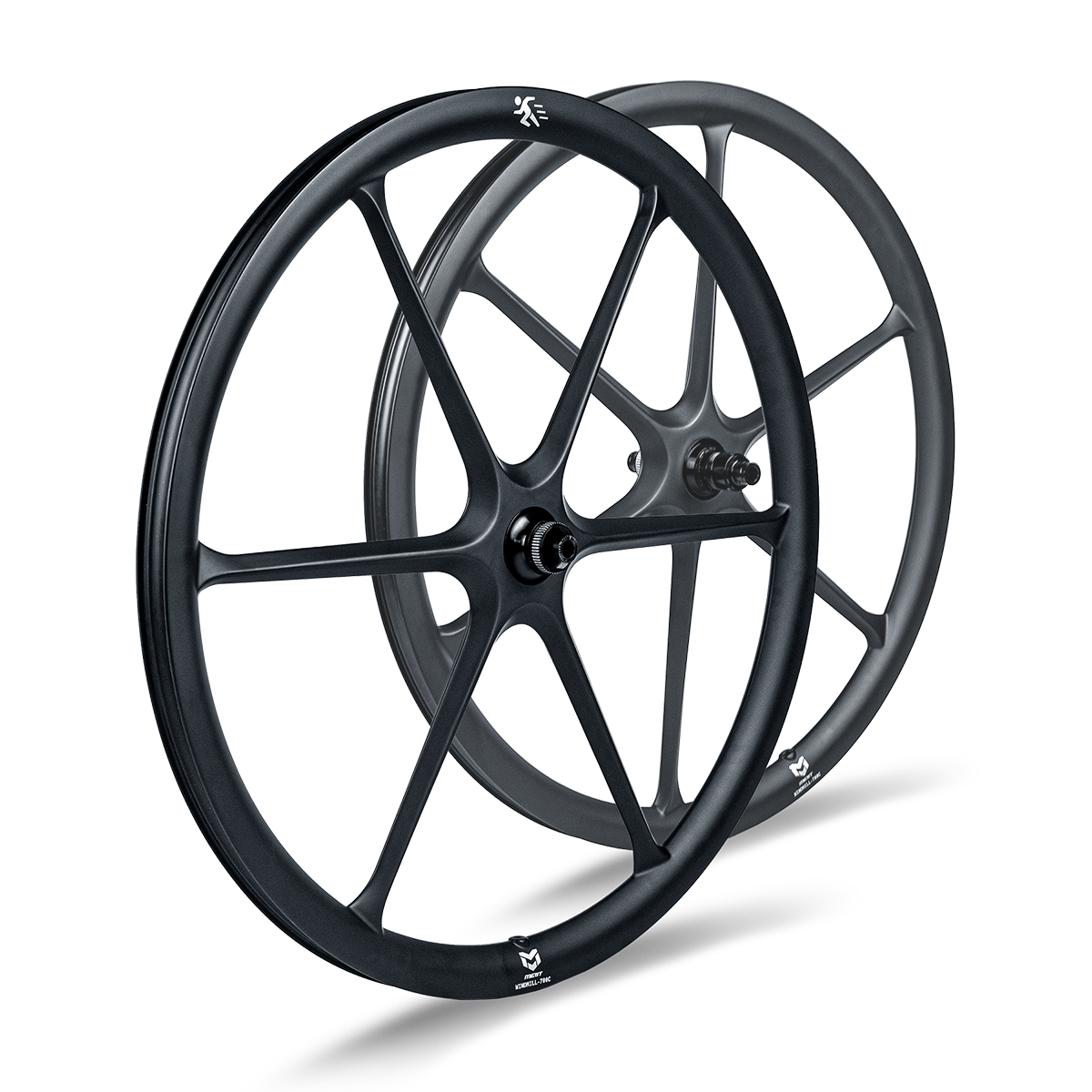

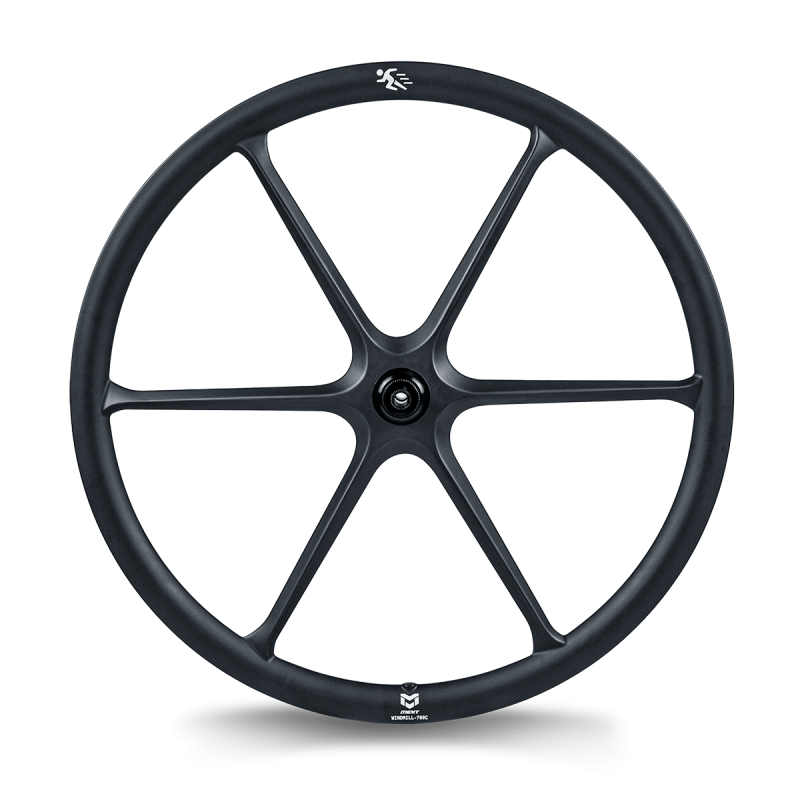

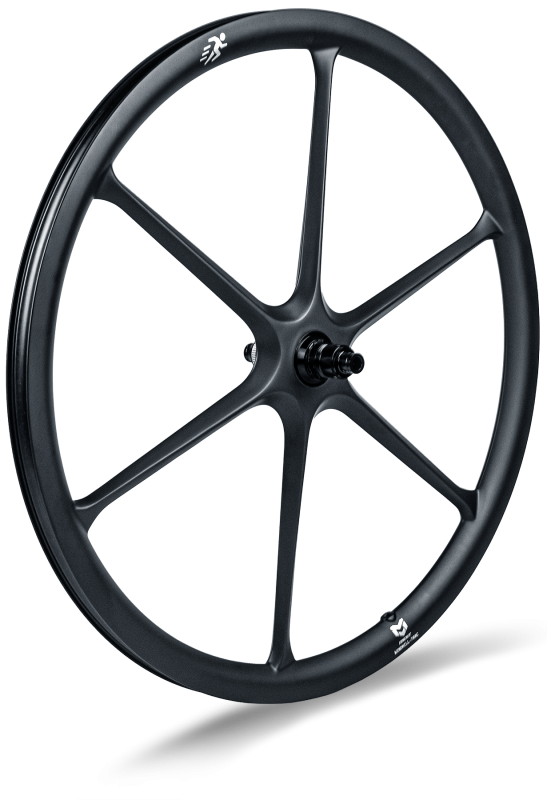

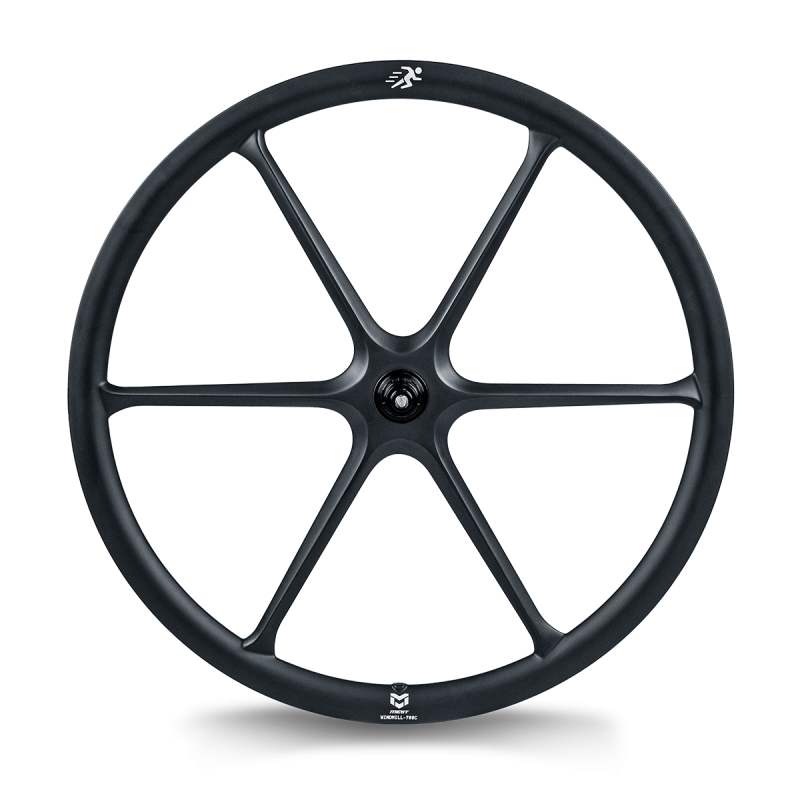

MERIT WINDMILL 700c 6 spoke Carbon WHEEL SET
Best look gravel wheels ever!
Superb lateral stiffness.
Best energy transfer from hubs to tyres.
Rims without nipples and spokes.
Easy tubeless application.
Aero tear drop shape blades.
Full carbon monocoque.
WHEEL
Ready for: Gravel
Size: 622mm (700c)
Used material: Mixed UD Carbon
Maximum rider weight: 110kg
For tyres: 30-50/622mm
Weight: 1490g ±30g

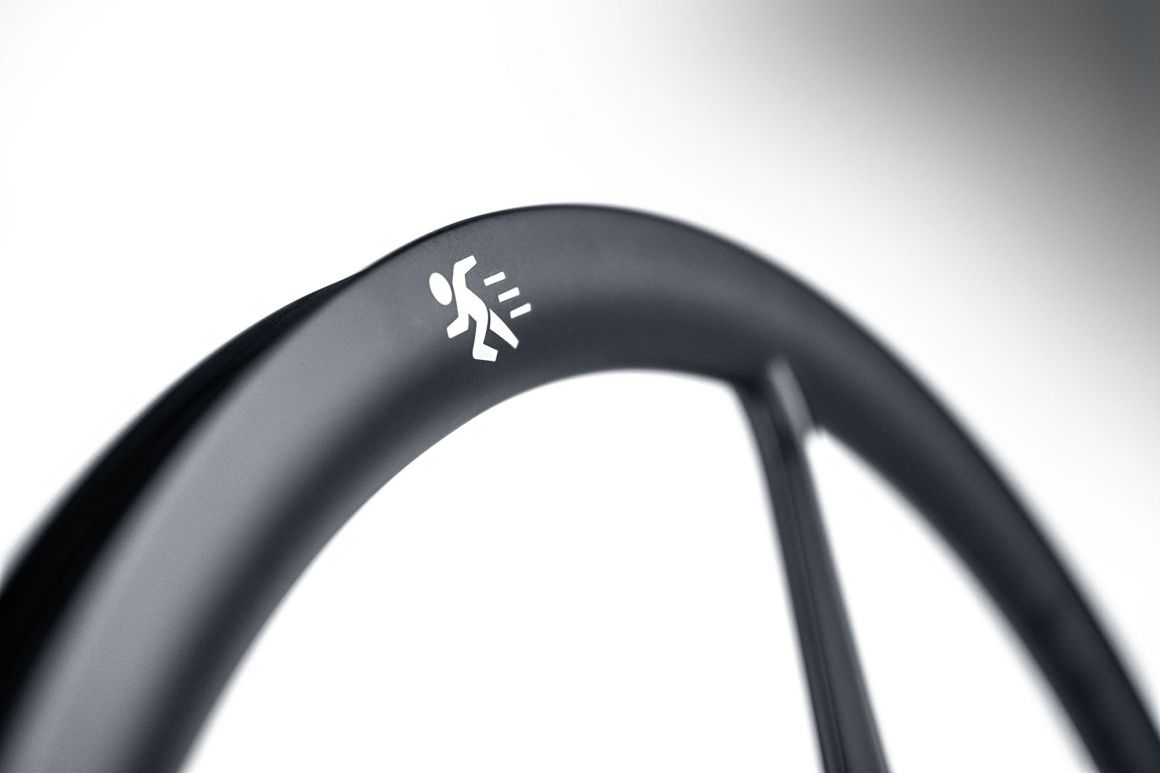

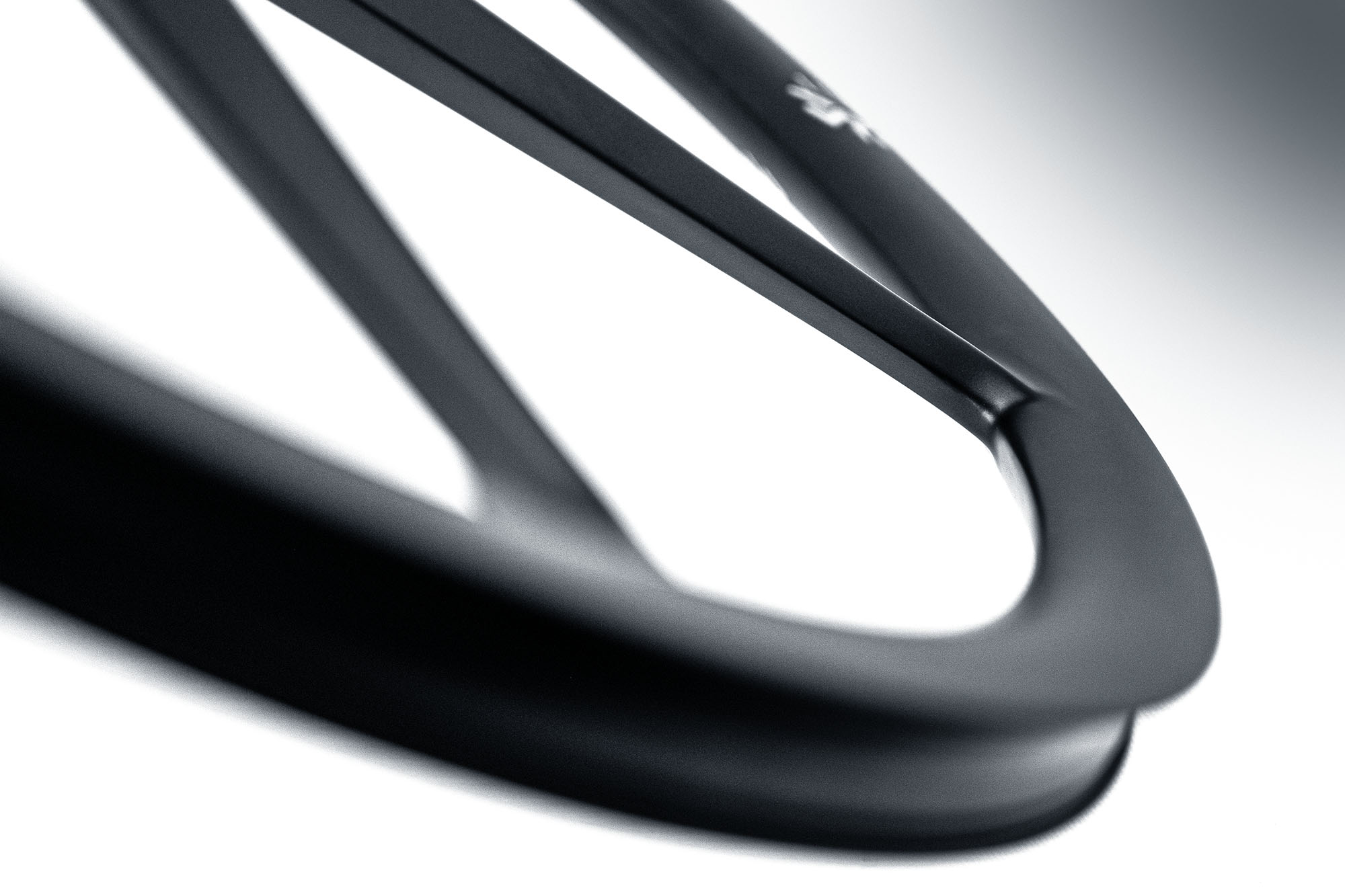

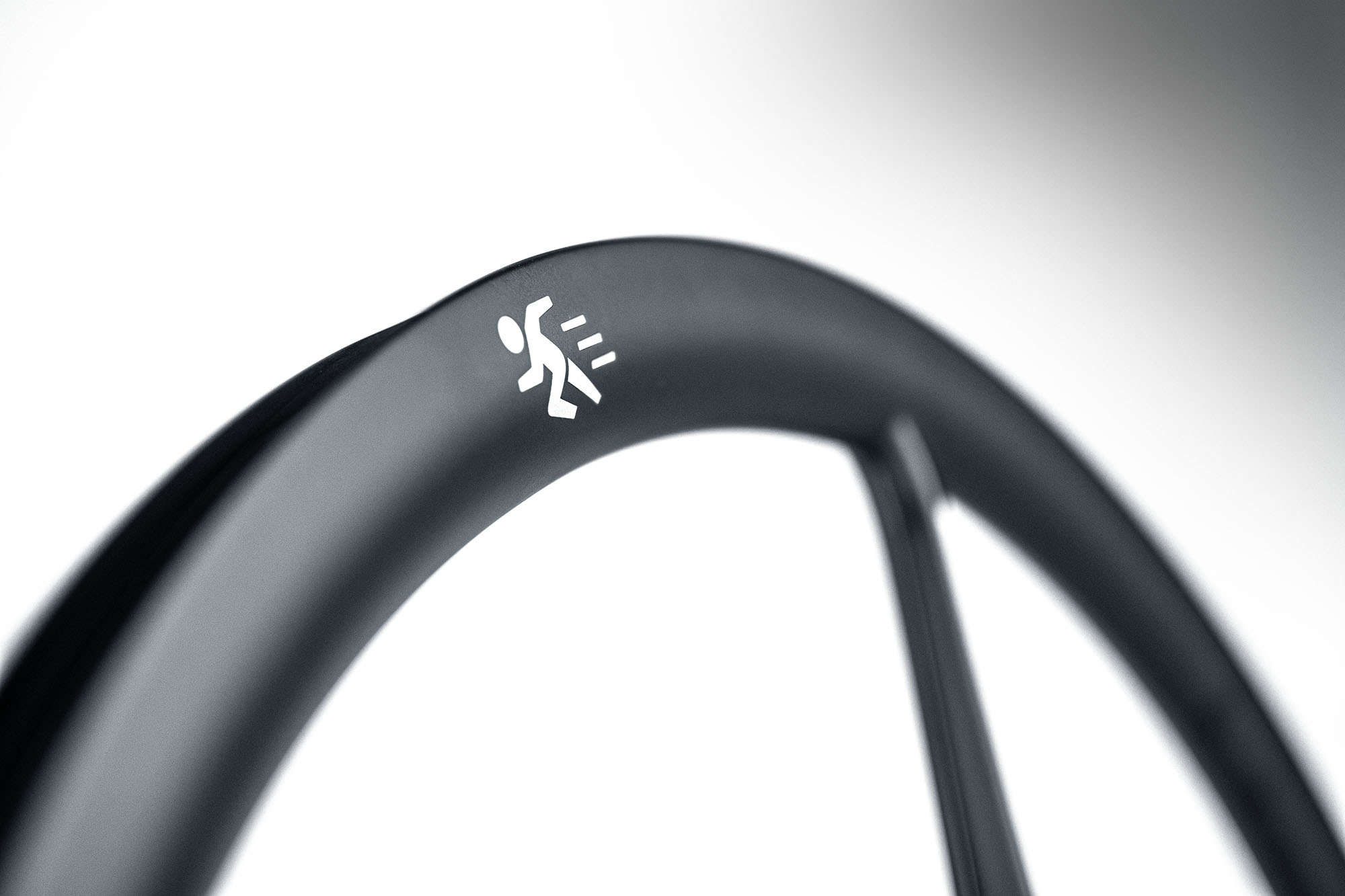

Rim
Outside rim width: 31mm
Inside rim width: 26mm
Rim depth: 35,8mm
Rim type: Hookless, tubeless

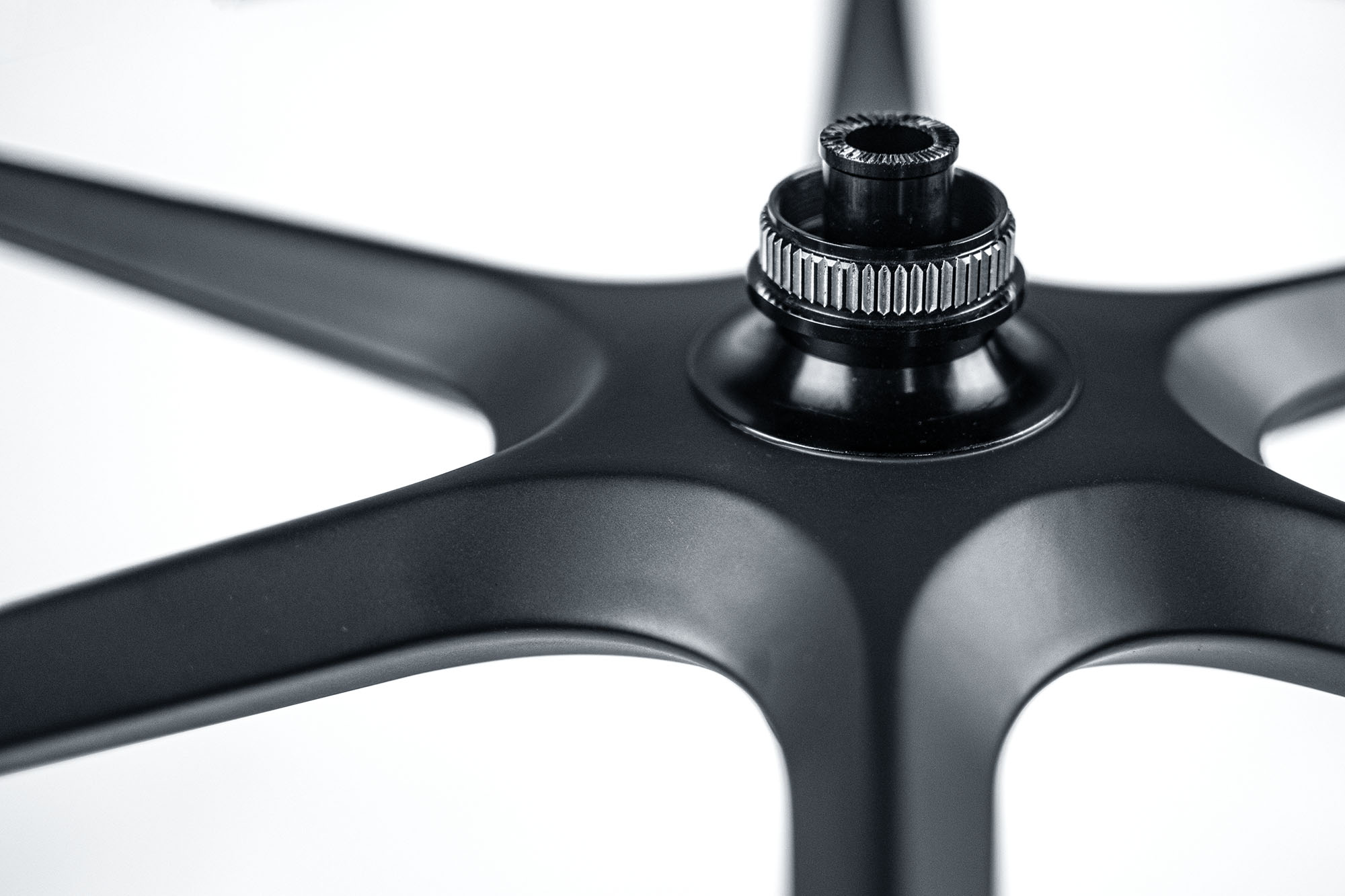

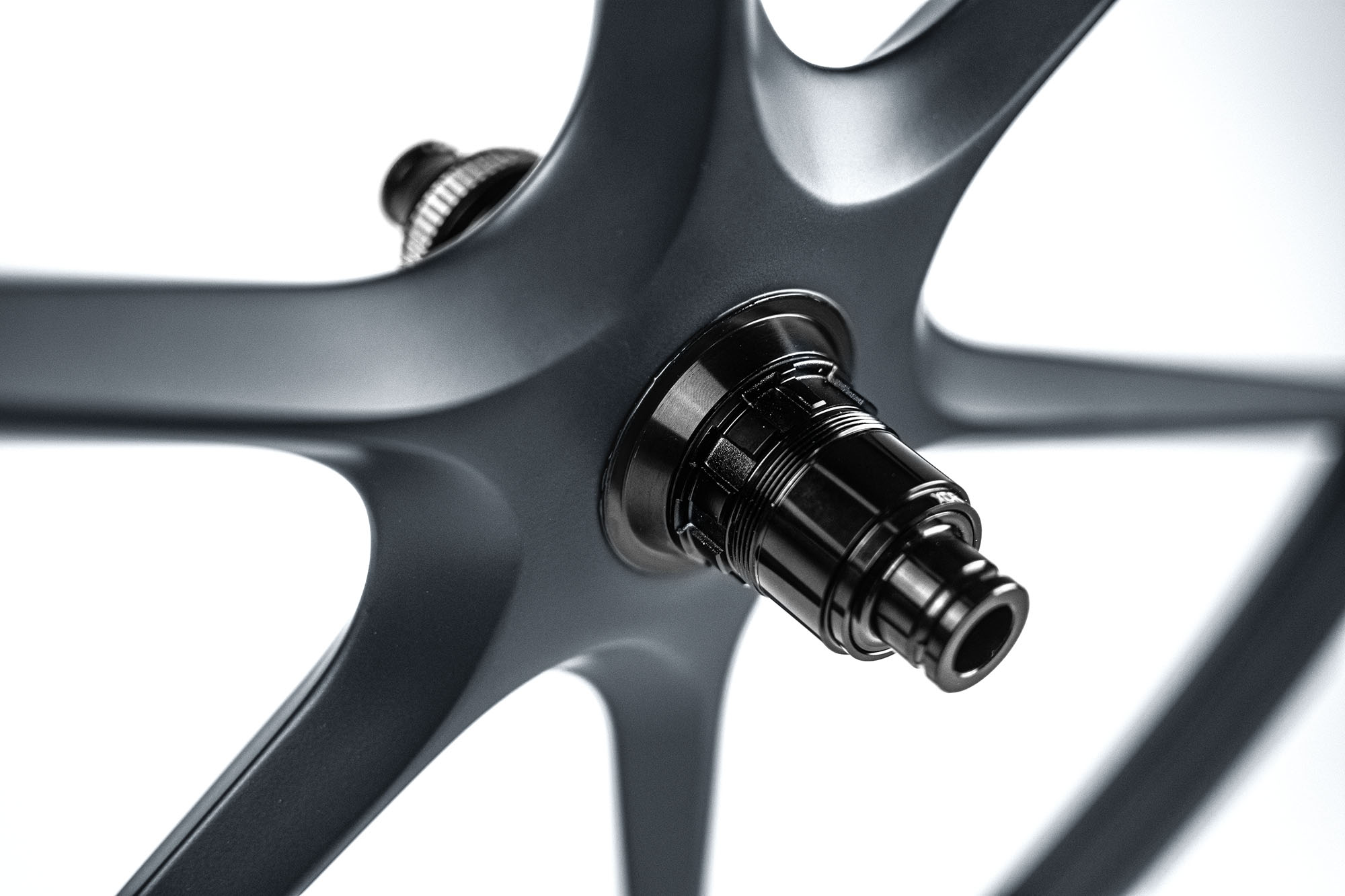

Hub
Rear hub: Ratchet 36T
Rear Axle: 142x12mm
Front axle: 100x12mm
Disc: Center Lock
Freehub Body: SRAM XDR or Shimano & SRAM 11sp
Many years ago, we introduced the first spoked carbon wheels for gravel bikes. Wheels that not only look great but also transfer energy as efficiently as possible from the hubs all the way to the tires. One-piece carbon spokes are much stiffer than traditional spoke designs. You’ll feel the difference from the very first pedal stroke.
Now we’re introducing a new generation of wind-slicing wheels that go far beyond the previous models. The new rims are hookless with a 26mm internal width, making them perfect for classic tubeless gravel tires ranging from 35–50mm, with maximum pressures up to 5 bar. The hubs are custom-built for these wheels, using standard 12x100mm front and 12x142mm rear thru-axles. The rear hub features a 36-tooth ratchet system for great efficiency and easier maintenance.
